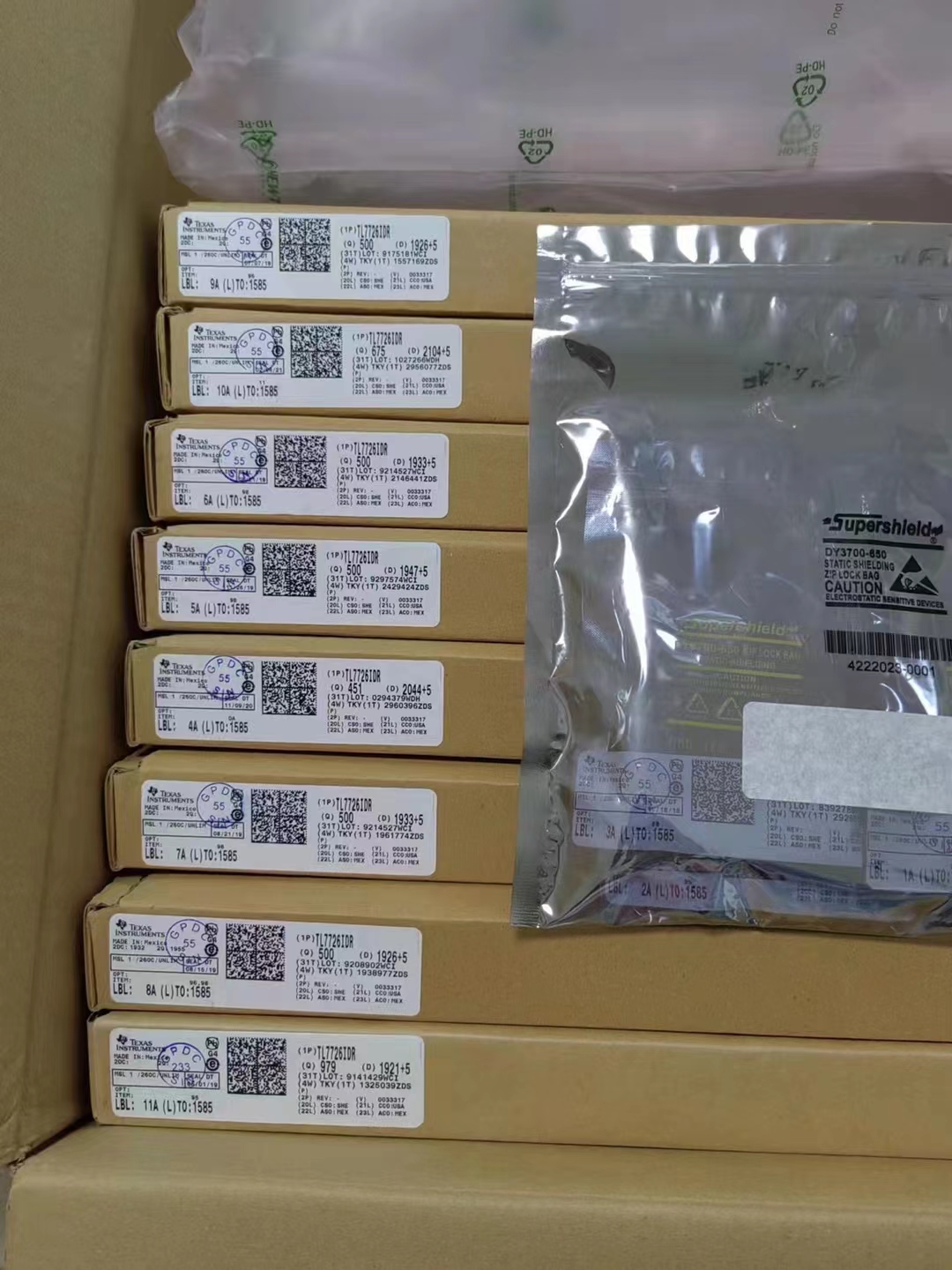

TUSB214QRWBRQ1

Features for the TUSB214-Q1

Qualified for Automotive Applications:

Device Temperature Grade 2: –40°C to 105°C AmbientOperating Temperature

Device HBM Classification Level H1C

Device CDM Classification LevelC3

Compatible with USB 2.0, OTG 2.0 and BC 1.2

Pin strap or I2C configurable

BC1.2 Charging Downstream Port (CDP) controller

Support for LS, FS, HS signaling

Ultra-low USB Disconnect and Shutdown Power Consumption

Selectable Signal Gain Via Daisy Chain Device for High Loss Applications

D1P/M and D2P/M Interchangeable and Host/Device Agnostic

Supports up to 5m pre-channel or 2m post-channel Cable Length

Four Selectable AC Boost Settings Via External PulldownResistor

DC Boost Along With AC Boost for Best SignalIntegrity

Description REQUEST A QUOTE

The TUSB214-Q1 is a USB High-Speed (HS)signal conditioner, designed to compensate for ISI signal loss in a transmission channel.

TUSB214-Q1 has a patent-pendingdesign which is agnostic to USB Low Speed (LS) and Full Speed (FS) signals. LS and FS signalcharacteristics are unaffected by the TUSB214-Q1 while HS signals are compensated.

Programmable signal AC boost and DC boost permits fine tuning device performance tooptimize High Speed signals at the connector. This helps to pass USB High Speed electricalcompliance tests.

In addition, TUSB214-Q1 is compatible with the USB On-The-Go (OTG) and Battery Charging(BC) protocols. The TUSB214-Q1 provides BC1.2 Charging Downstream Port (CDP) controller forapplications in which USB host or hub do not have this support.
