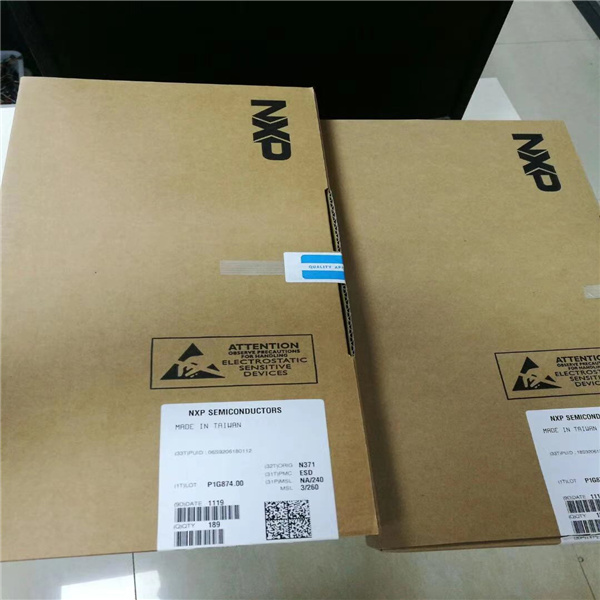

S9KEAZN8ACFK

Features

Performance

Up to 48 MHz Arm Cortex M0+ core

Single-cycle 32-bit x 32-bit multiplier

Memory

Up to 128K embedded flash

Up to 256 B EEPROM

Up to 16K RAM

Clocks

External Oscillator (OSC)

Internal Clock Source (ICS)

System functions

Power management module (PMC) with three power modes: Run, Wait, Stop

Low-voltage detection (LVD) with reset or interrupt, selectable trip points

Watchdog with independent clock source (WDOG)

Programmable cyclic redundancy check module (CRC)

Serial wire debug interface (SWD)

Aliased SRAM bitband region (BITBAND)

Bit manipulation engine (BME)

Communication interfaces

Up to two SPI modules

Up to three UART modules

Up to two IIC modules

Up to one CAN module

Multiple Timers

One 6-channel FlexTimer/PWM (FTM)

Up to two 2-channel FlexTimer/PWM (FTM)

One 2-channel periodic interrupt timer (PIT)

One pulse width timer (PWT)

One real-time clock (RTC)

Analog modules

One 16-channel 12-bit SAR ADC with internal bandgap reference channel, operation in Stop mode, optional hardware trigger (ADC)

Two analog comparators containing a 6-bit DAC and programmable reference input (ACMP)

Package：HVQFN24

Description REQUEST A QUOTE

Kinetis® EA series of 32-bit Arm® Cortex® MCUs are targeted for a wide range of automotive and industrial applications requiring the highest level of quality and longevity support. The Kinetis EA series is an entry point to the broad Arm ecosystem and features:

A low-power Arm Cortex-M0+ core and 8–128 KB of embedded flash

Excellent EMC/ESD, high temperature, and low radiated em
